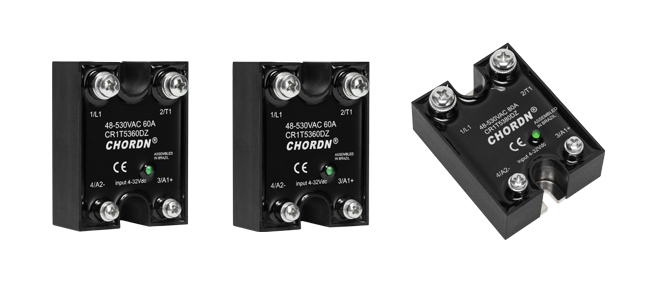

CR1T range, standard AC single phase solid state relay, has its semiconductor COMS chip with SCR anti-parallel welded on the ceramic and copper substrate, so as to keep good thermal conductivity. Pouring sealant is encapsulated inside. Input status green LED, output with RC and VDR as an option. Random or zero-cross conduction mode are available.
Zero Cross Solid State Relay designed for resistive loads and small inductance loads.
Back to back thyristors on output with (SCR) technology.
Operating range: 48 to 660VAC.
Ie: 60A, 80A
Protection: RC, VDR(optional)
Class: Random or Zero cross
Green LED visualization on the input.
Flexible 4-32VDC or 90-280VAC Control Voltage.
IP20 protection flaps on request (option).
Designed in conformity with EN60947-4-3(IEC947-4-3) and EN60950/VDE0805 (Reinforced Insulation)-UL-cUL.
